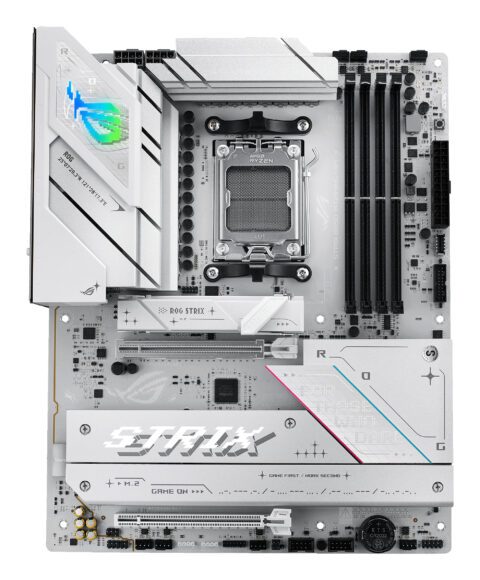

ASUS ROG STRIX B850-A GAMING WIFI AMD B850 Sokkel AM5 ATX

Yderligere information

Vægt	2,25 kg
Model	90MB1J50-M0EAY0
EAN	4711387772676
Vægt	2.25 kg
Processorproducent	AMD
Processor sokkel	Sokkel AM5
Kompatibel processor serie	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Understøttede procesorsokler	Sokkel AM5
Understøttede hukommelsestyper	DDR5-SDRAM
Antal hukommelsesstik	4
Maksimal intern hukommelse	256 GB
Hukommelses slots type	DIMM
Hukommelseskanaler	To-kanals
ECC-kompatibilitet	ECC & ikke-ECC
Understøttet hukommelsesur hastighed (maks.)	8000 MHz
Ikke-bufferet hukommelse	Ja
Understøttede lagerdrev brugerflader	M.2, SATA III
Understøttet datalagringsdrev typer	HDD & SSD
Antal understøttede HHD'er	2
Antal understøttede lagerdiske	6
Understøtter RAID	Ja
RAID-niveauer	0, 1, 5, 10
Understøttelse af parallel behandlingsteknologi	Ikke understøttet
On-board grafikkort	Ingen
Maksimal opløsning	7680 x 4320 pixel
USB 2.0-stik	2
USB 3.2 Gen 1 (3.1 Gen 1) stik	1
USB 3.2 Gen 2 (3.1 Gen 2) -stik	1
Antal SATA III-stik	2
Antal SATA II stik	0
Antal SATA stik	0
Lydstik på frontpanel	Ja
Stik til frontpanel	Ja
ATX strømstrik (24 stikben)	Ja
CPU-ventilatorstik	Ja
Antal stik til CPU-blæser	2
Antal kabinetventilatorstik	4
EPS strømstik (8-pin)	Ja
Antal EPS-strømstik (8-pin)	2
Thunderbolt-headere	1
Antal vandpumpetilslutninger	1
Antal headers til temperatursensor	1
Header med RGB-LED-ben	Ja
Antal RGB LED-pinheaders	3
Antal USB 2.0-porte	2
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte	0
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte	2
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte	1
Ethernet LAN-porte (RJ-45)	1
Antal VGA-porte (D-sub)	0
Antal HDMI-porte	1
Antal DVI-D-porte	0
Antal USB 3.2 Gen 2x2 type-C-porte	1
HDMI-version	2.1
Antal DisplayPorts	1
DisplayPort-version	1.4
Udgange til hovedtelefoner	1
Line-in	Ja
S/PDIF-udgang	Ja
Digital akustisk og optisk udgang	1
WiFi-AP antenne stik	2
Wi-Fi	Ja
Ethernet LAN	Ja
Ethernet-grænsefladetype	2.5 Gigabit Ethernet
Bedste Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi-standarder	Wi-Fi 7 (802.11be)
Bluetooth	Ja
Bluetooth-version	5.4
Komponent til	PC
Motherboard form faktor	ATX
Bundkort chipset familie	AMD
Bundkort chipsæt	AMD B850
Lyd-output kanaler	7.1 kanaler
Lydchip	Realtek ALC4080
Produktfarve	Hvid
Strømkilde type	ATX
Understøttede Windows-operativsystemer	Windows 11
PCI Express x16 (Gen 4.x) slots	1
Antal M.2 (M) slots	4
1. M.2 største nøglestørrelse	2280
1. M.2 højeste PCI Express-generation	5.0
2. M.2 største nøglestørrelse	22110
2. M.2 højeste PCI Express-generation	4.0
3. M.2 største nøglestørrelse	2280
3. M.2 højeste PCI Express-generation	4.0
4. M.2 største nøglestørrelse	2280
4. M.2 højeste PCI Express-generation	4.0
BIOS-type	UEFI AMI
BIOS-hukommelsesstørrelse	256 Mbit
Clear CMOS knap	Ja
Bredde	305 mm
Dybde	244 mm
Lydudgang	<strong>ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080</strong><br /> – Impedance sense for front and rear headphone outputs<br /> – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br /> – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input<br /> – Supports up to 32-Bit/384 kHz playback on front panel<br /><strong>Audio Features <br /></strong>- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP<br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Audio cover<br /> A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. <br />** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Specielle funktioner	<strong>Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports<br /><br />AMD Ryzen™ 7000 & 9000 Series Desktop Processors<br /></strong>M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode)<br />M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors<br /></strong>M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode)<br />M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)<br /><br /><strong>AMD B850 Chipset<br /></strong>M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)<br />M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)<br />2 x SATA 6Gb/s ports<br /> Specifications vary by CPU types.<br />** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.<br /><strong><br />AMD RAIDXpert2 Technology<br /></strong>Ryzen™ 9000 Series Processors: RAID 0/1/5/10<br />Ryzen™ 8000 Series Processors: RAID 0/1<br />Ryzen™ 7000 Series Processors: RAID 0/1/10
Andre funktioner	4 x DIMM slots, max. 256GB, DDR5<br />Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors<br /> ECC and Non-ECC, Un-buffered DIMM<br />Dual channel memory architecture<br />Supports AMD Extended Profiles for Overclocking (EXPO<sup>™</sup>)<br />ASUS Enhanced Memory Profile (AEMP)<br />* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.<br />** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Grafikudgang	1 x DisplayPort<br />1 x HDMI™ port<br />- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br /> Supports max. 8K@30Hz as specified in DisplayPort 1.4<br /> Supports 4K@60Hz as specified in HDMI 2.1<br />* VGA resolution support depends on processors' or graphic cards' resolution.

Vægt

2,25 kg

Model

90MB1J50-M0EAY0

EAN

4711387772676

Vægt

2.25 kg

Processorproducent

AMD

Processor sokkel

Sokkel AM5

Kompatibel processor serie

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Understøttede procesorsokler

Sokkel AM5

Understøttede hukommelsestyper

DDR5-SDRAM

Antal hukommelsesstik

Maksimal intern hukommelse

256 GB

Hukommelses slots type

DIMM

Hukommelseskanaler

To-kanals

ECC-kompatibilitet

ECC & ikke-ECC

Understøttet hukommelsesur hastighed (maks.)

8000 MHz

Ikke-bufferet hukommelse

Understøttede lagerdrev brugerflader

M.2, SATA III

Understøttet datalagringsdrev typer

HDD & SSD

Antal understøttede HHD'er

Antal understøttede lagerdiske

Understøtter RAID

RAID-niveauer

0, 1, 5, 10

Understøttelse af parallel behandlingsteknologi

Ikke understøttet

On-board grafikkort

Ingen

Maksimal opløsning

7680 x 4320 pixel

USB 2.0-stik

USB 3.2 Gen 1 (3.1 Gen 1) stik

USB 3.2 Gen 2 (3.1 Gen 2) -stik

Antal SATA III-stik

Antal SATA II stik

Antal SATA stik

Lydstik på frontpanel

Stik til frontpanel

ATX strømstrik (24 stikben)

CPU-ventilatorstik

Antal stik til CPU-blæser

Antal kabinetventilatorstik

EPS strømstik (8-pin)

Antal EPS-strømstik (8-pin)

Thunderbolt-headere

Antal vandpumpetilslutninger

Antal headers til temperatursensor

Header med RGB-LED-ben

Antal RGB LED-pinheaders

Antal USB 2.0-porte

Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte

Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte

Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte

Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte

Ethernet LAN-porte (RJ-45)

Antal VGA-porte (D-sub)

Antal HDMI-porte

Antal DVI-D-porte

Antal USB 3.2 Gen 2x2 type-C-porte

HDMI-version

2.1

Antal DisplayPorts

DisplayPort-version

1.4

Udgange til hovedtelefoner

Line-in

S/PDIF-udgang

Digital akustisk og optisk udgang

WiFi-AP antenne stik

Wi-Fi

Ethernet LAN

Ethernet-grænsefladetype

2.5 Gigabit Ethernet

Bedste Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi-standarder

Wi-Fi 7 (802.11be)

Bluetooth

Bluetooth-version

5.4

Komponent til

Motherboard form faktor

ATX

Bundkort chipset familie

AMD

Bundkort chipsæt

AMD B850

Lyd-output kanaler

7.1 kanaler

Lydchip

Realtek ALC4080

Produktfarve

Hvid

Strømkilde type

ATX

Understøttede Windows-operativsystemer

Windows 11

PCI Express x16 (Gen 4.x) slots

Antal M.2 (M) slots

1. M.2 største nøglestørrelse

2280

1. M.2 højeste PCI Express-generation

5.0

2. M.2 største nøglestørrelse

22110

2. M.2 højeste PCI Express-generation

4.0

3. M.2 største nøglestørrelse

2280

3. M.2 højeste PCI Express-generation

4.0

4. M.2 største nøglestørrelse

2280

4. M.2 højeste PCI Express-generation

4.0

BIOS-type

UEFI AMI

BIOS-hukommelsesstørrelse

256 Mbit

Clear CMOS knap

Bredde

305 mm

Dybde

244 mm

Lydudgang

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Specielle funktioner

Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0×4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * Specifications vary by CPU types. ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10

Andre funktioner

4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafikudgang

1 x DisplayPort* 1 x HDMI™ port** - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. * Supports max. 8K@30Hz as specified in DisplayPort 1.4 ** Supports 4K@60Hz as specified in HDMI 2.1 *** VGA resolution support depends on processors' or graphic cards' resolution.
